Formed Channel Belt Conveyors

Exceptional quality and efficiency Standard

Galvanized G140 U.S. prime steel conveyor frame, sturdy tubular cross braces, and proprietary diaphragm squaring plates are just some of the unique design features that set Sweet® Formed Channel Belt Conveyors apart.

This is quality equipment that comes in belt widths from 14’ to 72’ to easily accommodate your every bulk material handling need.


Belt Conveyors

Formed Channel
Belt Conveyors

Quick-Key® Spool
Belt Conveyors

Solid Construction to Handle Your Heaviest Applications
Quick-Key Logo

Solid Construction to Handle Your Heaviest Applications

Sweet® Formed Channel Belt Conveyors offer a robust and reliable Belt Conveyor designed to meet your heavy-duty material handling needs. With a galvanized steel frame featuring tubular cross braces and a unique diaphragm squaring plate, these conveyors provide exceptional strength and durability.

They can support a weight of 565 pounds per linear foot when supports are spaced on 20-foot centers, ensuring efficient and secure transport of your materials.

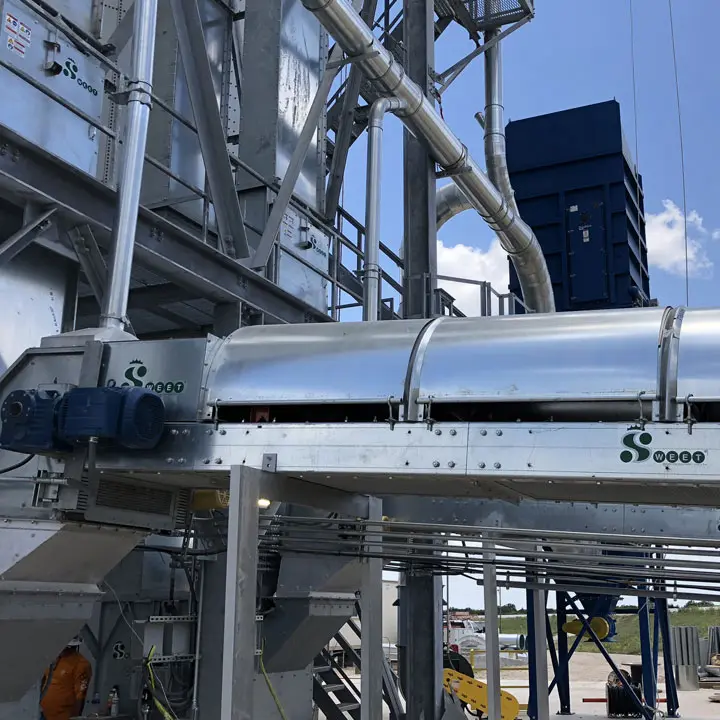

Solid construction to handle your heaviest applications

Solid Construction to Handle Your Heaviest Applications

Sweet® Formed Channel Belt Conveyors can manage even your heaviest applications up to 565-pounds per linear foot when supports are spaced on 20′ centers.

Solid construction includes standard head sections with pillow block spherical roller bearings; Turned, Ground, and Polished (TG&P) headshafts; lagged pulleys and bushed hubs. The standard tail section includes self cleaning wing style tail pulley; and galvanized top mount protected screw take-ups.

Designed to Meet Your Heavy-Duty Material Handling Needs

Our Formed Channel Belt Conveyors are constructed using all bolted connections with a channel splice connection, allowing for easy installation and maintenance. With capacities ranging from 300 to 88,000 bushels per hour (8 to 2,250 metric tons per hour), these conveyors can handle a wide range of materials and throughput requirements.

Built to Last constructed using galvanized G140 U.S. prime steel
Flexible Drive Options, complete drive packages with motor power ranging from 1 to 250 HP (100 – 800 FPM)
Versatile Design, belt widths available in 14 to 72 inches to accommodate various applications
CEMA Idler Options B. C, D, and E ranging from 4 to 6 inches in diameter
Reliable Performance, tail section features self-cleaning wing-style tail pulley, pillow block bearings, and a galvanized top mount protected screw take-up standard

Learn more about our Formed Channel Belt Conveyors by downloading our brochure or technical manual.

Formed Channel Belt Conveyors BrochureBrochure
Formed Channel Belt Conveyors Brochure

Formed Channel Belt Conveyors Technical ManualBrochure
Formed Channel Belt Conveyors Technical Manual
