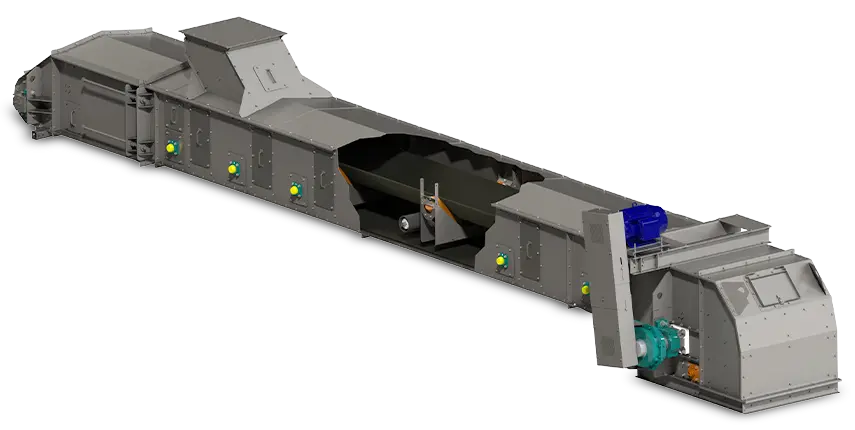

Enclosed Belt Conveyors
Achieve the High Capacity You Need for Conveying Agricultural and Industrial Products
Innovative design utilizing galvanized G140 U.S. prime steel is why our Enclosed Belt Conveyor is the obvious choice to solve your high-capacity industrial and agricultural conveying problems.
Overview
Enclosed
Belt Conveyors
Formed Channel
Belt Conveyors
Quick-Key® Spool
Belt Conveyors

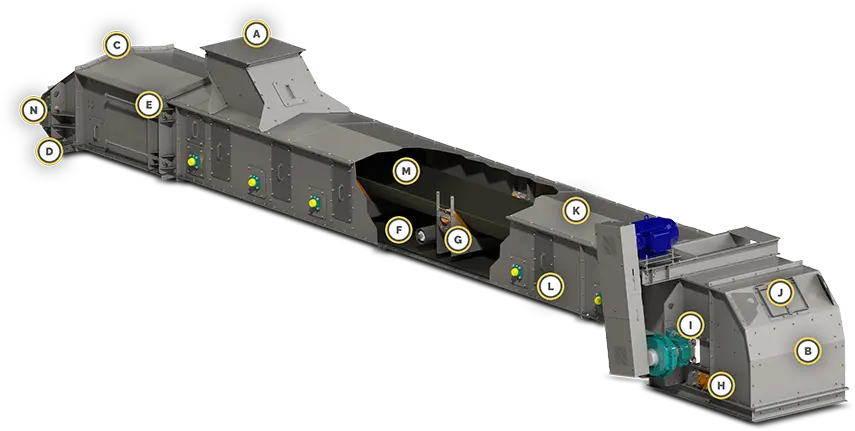

Inlet Chute
- ¼” fully-lined polyurethane standard
- Optional liners: AR 400, Urethane ceramic chip, or ceramic tile
Discharge Transisiton
- ¼” fully-lined polyurethane standard
- Optional liners: AR 400, Urethane ceramic chip, or ceramic tile.
Wing Pulley with Access Door
- V-shaped Chevron wing can be opened while running, the Pulley features reclaim flaps for better cleanout in the tail.
Tail Support Rail (Optional)
ACME Screw Take-Ups
- Flow of gas monitored and regulated through control panel
Horizontal Carrying Belt Pulley
- For belt longevity and gentle handling
Pivoting Idler System
- Heavy-duty CEMA 6 Idler, 45-degree and seated for life
Belt Scraper
- Cleans belt, reducing carryover towards tail
Lip Seal
Head Inspection Door
Hip Roof
- Allows snow and rain to easily slide off
Maintenance Door
- Easy-access to pivoting idlers with a simple tilting system for ease of maintenance.
Belt
Telescoping Tail
- Features an easy access tail clean-out door
Innovative Design Reduces Maintenance
Sweet® Enclosed Belt Conveyors are offered in belt widths from 24” through 60”. Fully-enclosed belt conveyors with a self-cleaning tail, it also features heavy-duty sealed-for-life CEMA C6 idlers, and auxiliary belt alignment rollers. A lined inlet chute, ¼” fully-lined polyurethane discharge transition, and 3/8” anti-static UHMW bottom liners are all standard. And the hip roof allows snow and rain to easily slide off. Units are available in stainless steel.
Inlet Chute
Optional liners: AR 400, Urethane ceramic chip, or ceramic tile
Discharge Transition
Optional liners: AR 400, Urethane ceramic chip, or ceramic tile
Wing Pulley with Access Door
Tail Support Rail (optional)
ACME Screw Take-Ups
Horizontal Carrying Belt Pulley
Idler Support and Tilting System
Belt Scraper
Lip Seal
Head Inspection Door
Hip Roof
Allows snow and rain to easily slide off
Maintenance Door
Belt
Telescoping Tail
Features an easy access tail clean-out door
Innovative Design Reduces Maintenance
Sweet® Enclosed Belt Conveyors are offered in belt widths from 24” through 60”. Fully-enclosed belt conveyors with a self-cleaning tail, it also features heavy-duty sealed-for-life CEMA C6 idlers, and auxiliary belt alignment rollers.
A lined inlet chute, ¼” fully-lined polyurethane discharge transition, and 3/8” anti-static UHMW bottom liners are all standard. And the hip roof allows snow and rain to easily slide off. Units are available in stainless steel.
Less Product Loss and Labor Means More Efficiency and Safety
We understand how product loss and labor costs eat into your profits and drive down efficiency. Poorly constructed equipment can do that while also increasing the likelihood of breakdowns.
Low-maintenance Sweet® Enclosed Belt Conveyors effectively meet and exceed your high-capacity industrial and agricultural conveying needs, making multi-floor material movement easy, fast, profitable and safe.
Built to Last constructed using galvanized G140 U.S. prime steel
